Phaetus PS Brass Nozzle

Phaetus PS Brass Nozzle

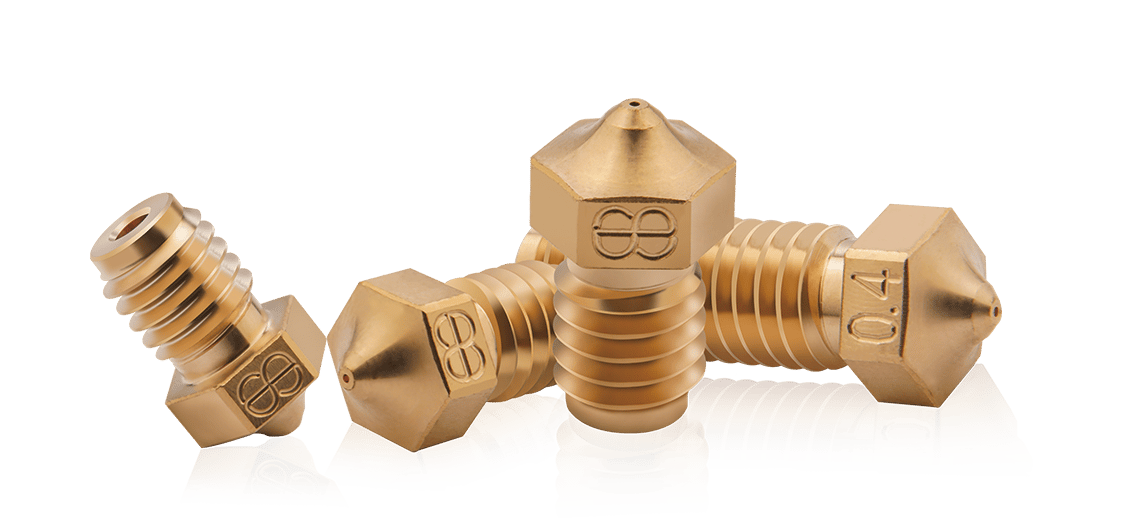

The brass nozzle is a basic 3D printing nozzle. It is suitable for printing PLA, ABS, TPU, PA, PP, PC, ASA, Nylon, PETG, PVA, HIPS and other conventional filaments. With wide applications and low price, the brass nozzle can meet the daily printing needs of ordinary users.

Performance Analysis

Min. orifice diameter 0.1mm/±0.01mm in experimental level application, making sure high accuracy printing.
Tip size from 0.1~1.0 mm, for 1.75/3.00 filament; Compatible with most of 3D printers on the market.
Special processing technology and post-treatment make the nozzle without burr at the edge of tip and without debris in the hole; Lasting gloss for a long time without oxidation.
Inner hole roughness lower than Ra0.4; Higher smoothness and less adhesion.
First-class quality brass material ensures the stability of properties.

Applicable Scenario

Wide application with high cost performance, printing well with conventional material, such as PLA, ABS, TPU, PA, PP, PC, ASA, Nylon, PETG, PVA, HIPS and etc.

Product
Precision

Min. Orifice Diameter    φ0.10

Tolerance     ±0.01mm

Inner Hole Roughness     ≤Ra0.4μm

Concentricity     ≤0.02mm

Additional Information:

• Min. diameter hole of 0.1mm/±0.01mm in experimental level application, ensuring high accuracy printing;
• Tip size from 0.1~1.0 mm, for 1.75/3.00 filament; Compatible with most 3D printers on the market;
• Special processing technology and post-treatment make the nozzle without burr at the edge of tip and without debris in the hole;
• Lasting gloss for a long time without oxidation;
• Inner hole roughness lower than Ra0.4; Higher smoothness and less adhesion;
• First-class quality brass material ensures the stability of properties.
