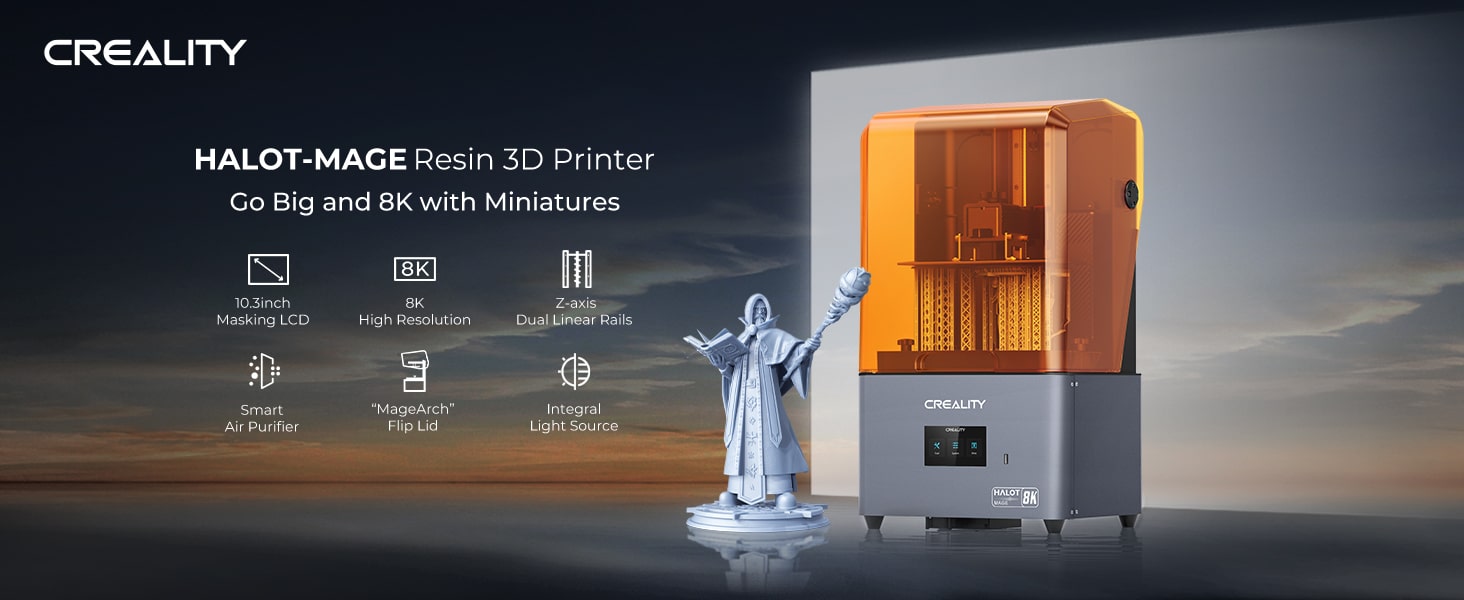

Creality Halot Mage 8K UV Resin 3D Printer

Description

Creality Halot Mage 8K Resin 3D Printer provides a large 228 × 128 × 230 mm build volume and a high-resolution 10.3-inch monochrome LCD for detailed resin printing. It suits miniature makers, product designers, model builders and small studios that need fine surface detail with more room than a smaller desktop resin machine.

The 8K screen uses 7,680 × 4,320 pixels with an XY pixel size of approximately 29.7 μm. This helps reproduce fine textures and small features when the model, resin, exposure settings and support strategy are correctly prepared.

Why choose the Halot Mage 8K?

• Large resin build volume: 228 × 128 × 230 mm for bigger parts or multiple smaller models in one job.
• 8K monochrome LCD: supports fine XY detail for miniatures, dental-style models, prototypes and display pieces.

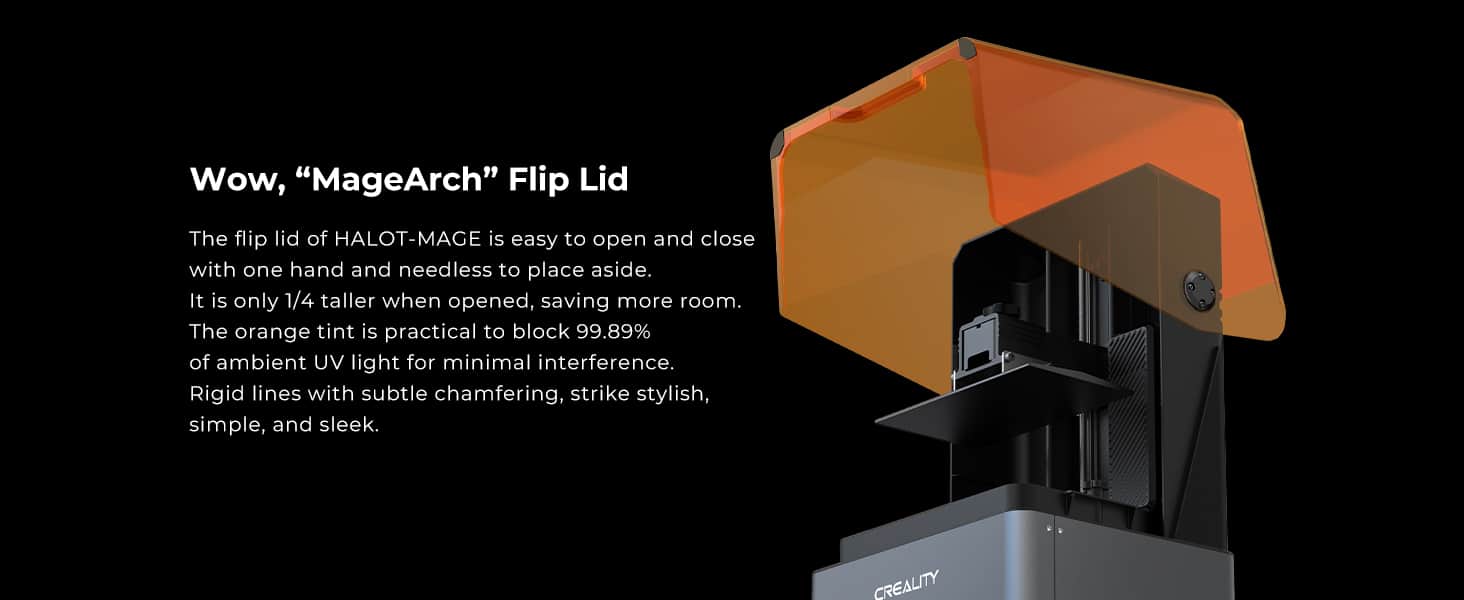

• Flip-up lid: the MageArch cover opens vertically to reduce the space needed around the printer.
• Dual linear rails: stabilise Z-axis movement during layer changes.

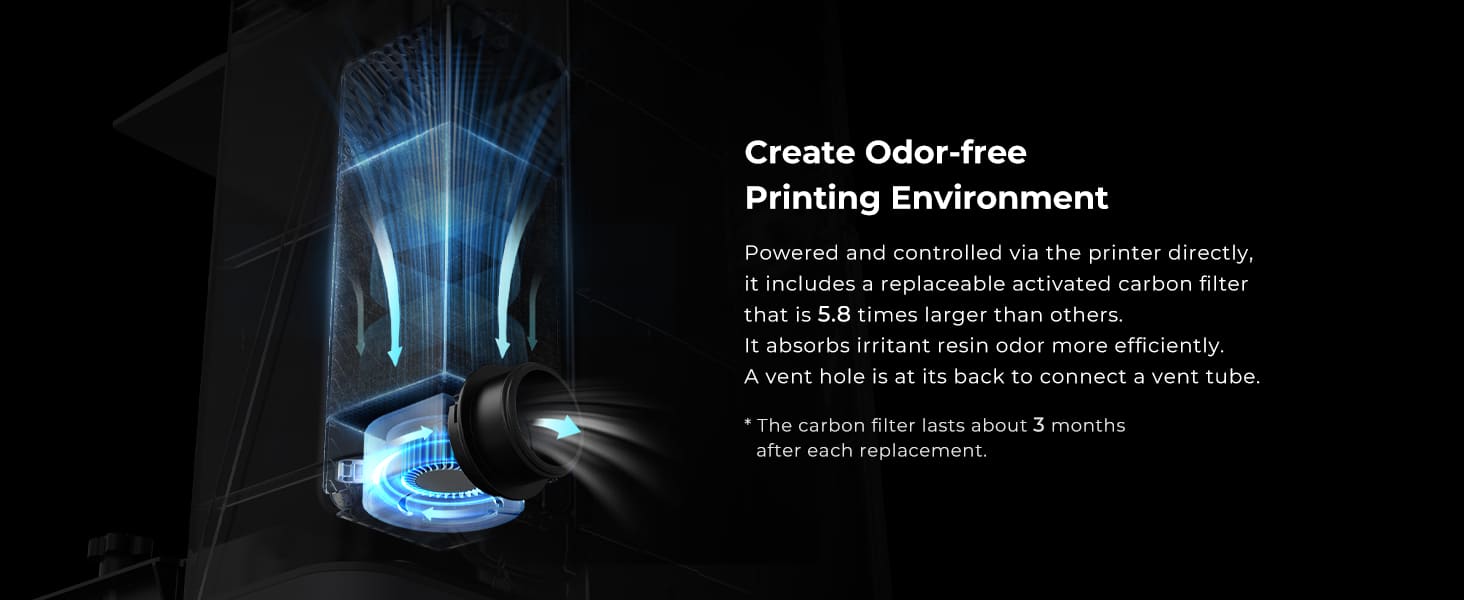

• Integrated carbon filter: helps reduce resin odour, although appropriate room ventilation is still required.
• Integral light source: distributes curing light consistently across the build area.

Halot Mage 8K key specifications

Plan your resin workflow

Resin printing produces highly detailed parts, but it requires a controlled workflow. Models must be oriented and supported in slicing software, and finished prints need washing and post-curing. Keep suitable gloves, eye protection, wash equipment and a curing solution ready before the first print.

Always work in a well-ventilated area and follow the resin manufacturer’s safety data and disposal instructions. Uncured resin should not contact skin or enter household drains. The built-in filter can help with odour but does not replace ventilation or personal protective equipment.

Who is it for?

The Halot Mage is a practical choice for tabletop miniatures, jewellery masters, product prototypes, mould patterns and detailed display models. The larger build plate also enables batch printing, although exposure testing and support placement remain important for reliable results.

Buy with support from DC3D

Compare more machines in our 3D printer range and browse compatible Creality UV resin. For help planning a resin setup, contact DC3D. Local 3D printer repair support is available when needed.

Frequently asked questions

Does an 8K screen guarantee a perfect print?

No. Screen resolution supports fine detail, but resin choice, exposure, orientation, supports, temperature and post-processing all affect the finished result.

Does the carbon filter replace ventilation?

No. It helps reduce odour, but resin should still be handled in a suitably ventilated workspace with the required protective equipment.

What happens after printing?

The part must be removed safely, washed according to the resin instructions and fully post-cured before normal handling.

More Powerful Performance:

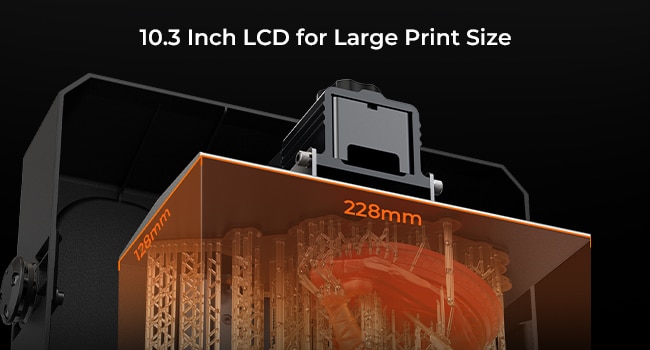

1. 10.3″ LCD & Large Print Size

2.Ultra 8K High Precision

3.Orange “MageArch” Flip Lid

4.Activated Carbon Filter for Pleasant Resin Printing

5.Self-developed HALOT BOX: 4-stage Workflow Rich Presets

6.CHITUBOX Pro: 3-month VIP for Free

8K Magic for Exciting Details

Ultra Steady Z-axis with Dual Linear Rails

High-precision Integral Light Source

Specifications:
