3D Printer Nozzle Size Guide

The quick recommendation: keep a 0.4 mm nozzle for the best all-round balance, choose 0.6 mm when functional parts, strength and productivity matter most, use 0.2 mm for genuinely fine detail, and move to 0.8 mm or larger for big parts only when your hotend can supply the required flow.

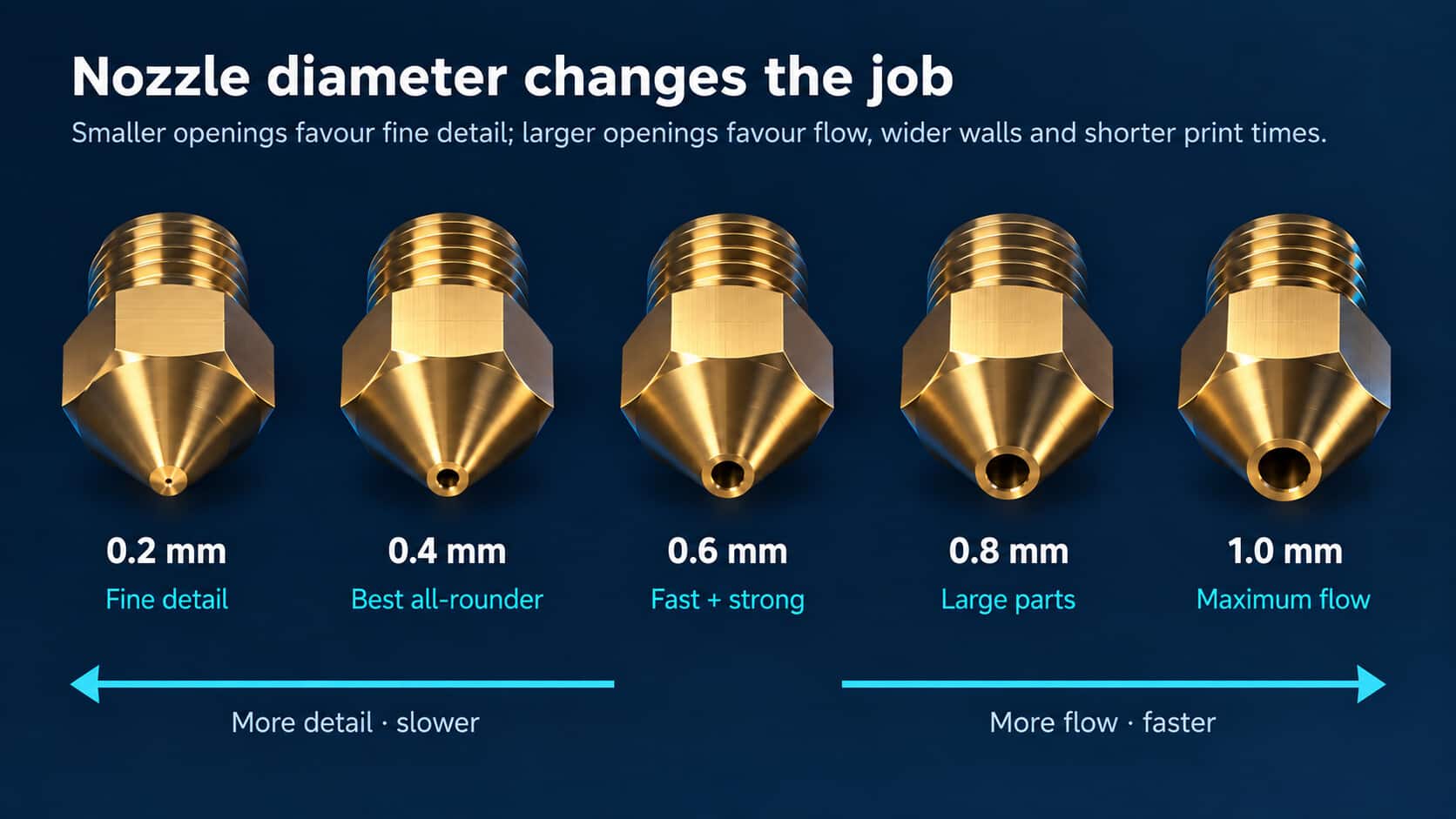

Which nozzle size should you use?

Nozzle	Best for	Typical line width	Useful layer-height range	Trade-off
0.2 mm	Miniatures, fine lettering, small holes and cosmetic detail	0.20–0.24 mm	0.05–0.15 mm	Slow and more sensitive to blockages
0.4 mm	Everyday prints, prototypes and mixed workloads	0.40–0.48 mm	0.10–0.30 mm	The best general-purpose compromise
0.6 mm	Functional parts, jigs, brackets, medium-to-large prints and many filled materials	0.60–0.72 mm	0.15–0.45 mm	Less tiny detail, but much better productivity
0.8 mm	Large prototypes, bins, vases, thick walls and fast draft parts	0.80–0.96 mm	0.20–0.60 mm	Needs substantially more hotend flow
1.0 mm	Very large parts and high-output work on a suitable high-flow system	1.00–1.20 mm	0.25–0.75 mm	Coarse detail and demanding melt flow

0.2 mm: when detail is the job

Choose 0.2 mm for small models, sharp text and features that a 0.4 mm extrusion simply cannot resolve. Print slowly, use clean unfilled filament and make sure it is dry. Carbon fibre, glass fibre, glow and other particle-filled materials are poor choices for such a small opening because blockage risk increases.

0.4 mm: the recommended all-rounder

This is the correct default for most people. It handles normal PLA and PETG work well, retains useful detail, has mature slicer profiles and usually reaches a sensible print time without pushing the hotend. If you are unsure which nozzle to fit, start here.

0.6 mm: our practical productivity choice

For workshop parts, brackets, fixtures, enclosures and larger prototypes, 0.6 mm is often the sweet spot. Wider lines can produce strong walls with fewer passes, and the larger opening is friendlier to many fibre-filled materials. It is not automatically faster: if the slicer asks for more plastic than the hotend can melt, you must reduce speed or use a tested high-flow profile.

0.8 mm and 1.0 mm: large-format tools

These sizes suit big parts, thick single-wall prints and coarse prototypes. They can cut the number of walls and layers dramatically, but only if the machine can supply the melt flow. Fine text, small holes, tight corners and delicate supports will be less accurate.

Real-world examples

• 28 mm display miniature: 0.2 mm, fine layers, lower speed and clean PLA.
• General prototype enclosure: 0.4 mm for balanced detail, reliable supports and quick iteration.
• Workshop jig or machine bracket: 0.6 mm, wider walls and a strength-focused orientation.
• Large storage bin or vase: 0.8 mm where broad extrusion lines matter more than small surface detail.
• Carbon-fibre or glow filament: usually 0.6 mm hardened steel where the material manufacturer permits it; never assume a brass nozzle will survive abrasive material.

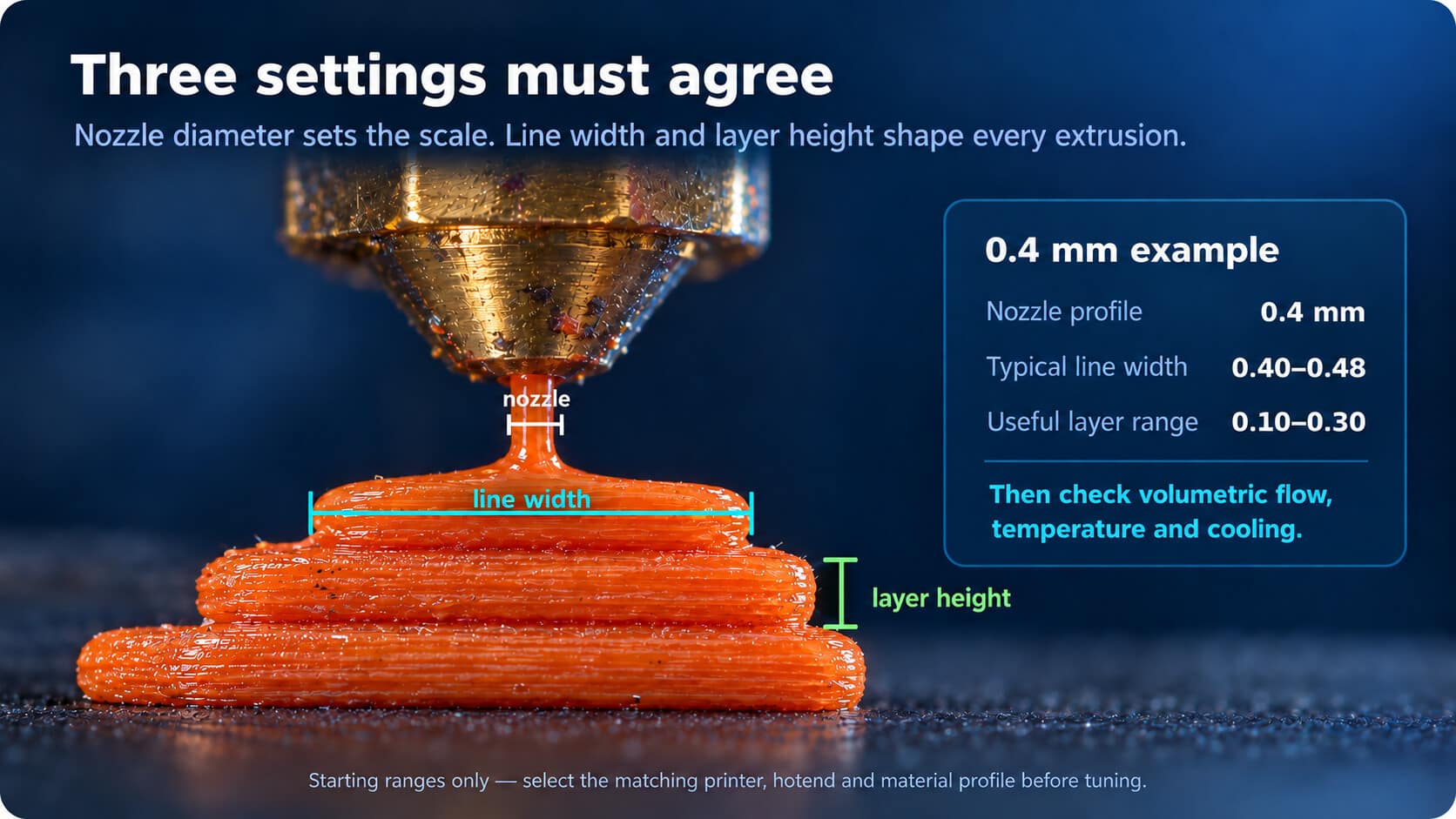

The settings that matter after a nozzle change

1. Select the correct nozzle diameter in the printer and slicer profile. Changing the hardware without changing the profile produces incorrect paths and extrusion calculations.
2. Set line width deliberately. A useful starting point is approximately 100–120% of nozzle diameter, provided the printer profile supports it.
3. Keep layer height sensible. About 25–75% of nozzle diameter is a practical working envelope. Extreme values need careful testing.
4. Respect maximum volumetric flow. Flow is the volume of plastic requested per second. A wide line, tall layer and high speed multiply together; exceeding the hotend limit causes weak, dull or under-extruded parts.
5. Tune temperature for material and flow. A larger or hardened-steel nozzle may need a modest temperature increase at higher flow, but do not exceed the filament or printer limits.
6. Recheck flow calibration. Confirm wall thickness, top surfaces and extrusion rather than copying an old flow multiplier blindly.
7. Retune pressure or linear advance where available. A different melt path changes corner behaviour and pressure response.
8. Check cooling, overhangs and minimum layer time. Bigger extrusions carry more heat; tiny 0.2 mm features may need more time to cool.
9. Do not over-correct retraction. Start with the manufacturer profile and change retraction only to solve a measured issue.
10. Re-run the printer’s relevant calibration. Depending on the machine, confirm Z-offset, bed mesh, flow and first-layer behaviour after installation.

Nozzle material matters too

Material	Recommended use	What to know
Brass	Normal PLA, PETG, ABS and non-abrasive filament	Excellent heat transfer and easy tuning, but abrasive fillers wear it quickly.
Hardened steel	Carbon fibre, glass fibre, glow and other abrasive materials	Longer wearing. Lower thermal conductivity can require temperature or speed adjustment.
Stainless steel	Controlled food-contact workflows and some specialist materials	Useful where brass contamination is a concern, but does not make a printed item automatically food safe.
Plated copper	Higher-flow and higher-temperature work where the exact coating is suitable	Good heat transfer. Confirm temperature rating and coating condition.
Ruby or tungsten-based	Premium abrasive-material service	High wear resistance, higher cost and model-specific availability.

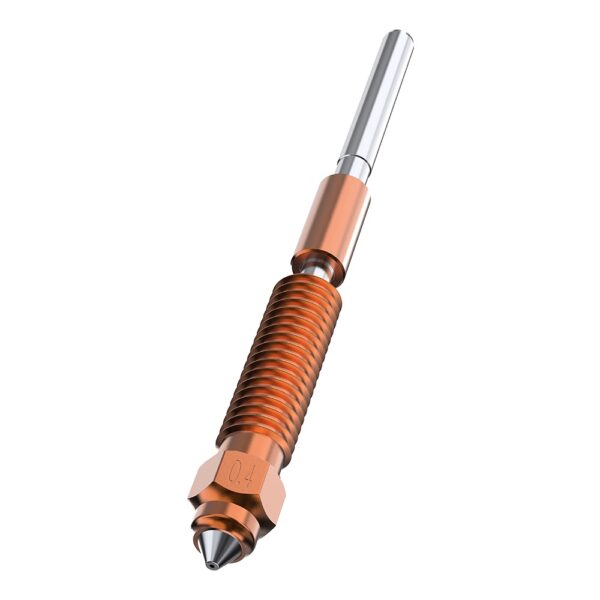

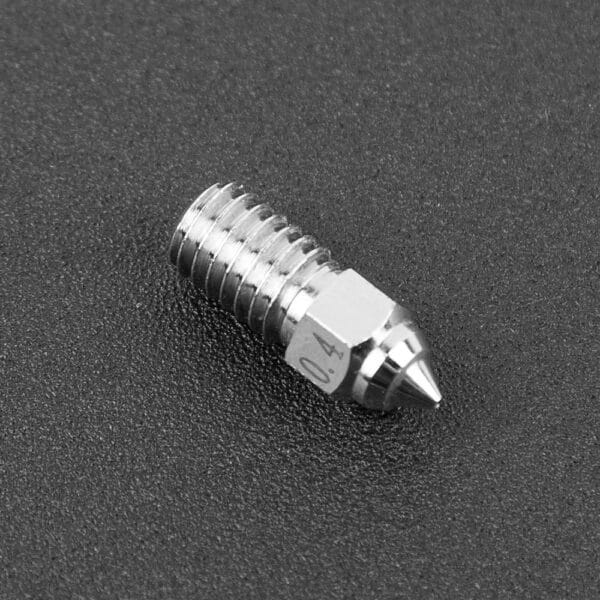

DC3D nozzle links by Creality printer

Please check the exact model and year before ordering. Creality has used different hotend systems within families that look very similar.

Stock changes: these links remain useful even when a particular size is temporarily sold out. Contact DC3D if the exact model, year or installed hotend is unclear.

Changing a nozzle safely

• Follow the procedure for the exact printer. Some integrated quick-swap assemblies are changed cold; traditional threaded nozzles are commonly loosened and tightened hot.
• Keep clear of hot metal and molten plastic. Use the correct tools and support the heater block when the manufacturer requires it.
• Never force a nozzle that feels cross-threaded or does not match the hotend.
• Purge the previous material, inspect for leaks, then check the first layer and calibration.
• Creality recommends inspecting and replacing the Ender-3 V3 KE nozzle at about 500 cumulative printing hours, depending on wear and material.

Official compatibility references

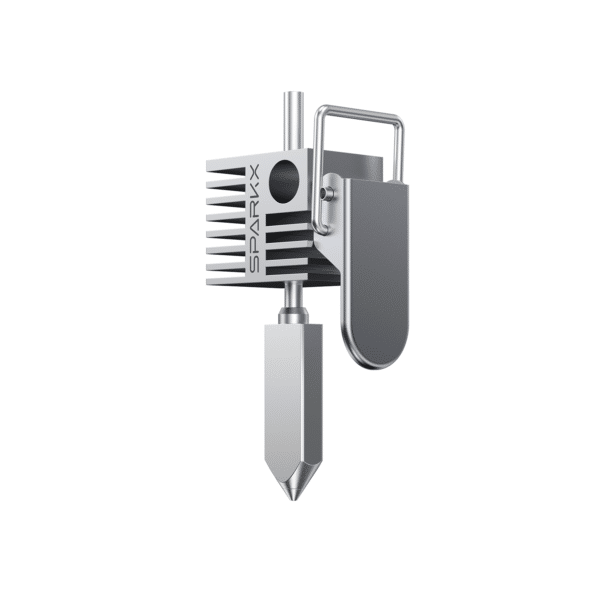

• Creality SparkX i7 FAQ

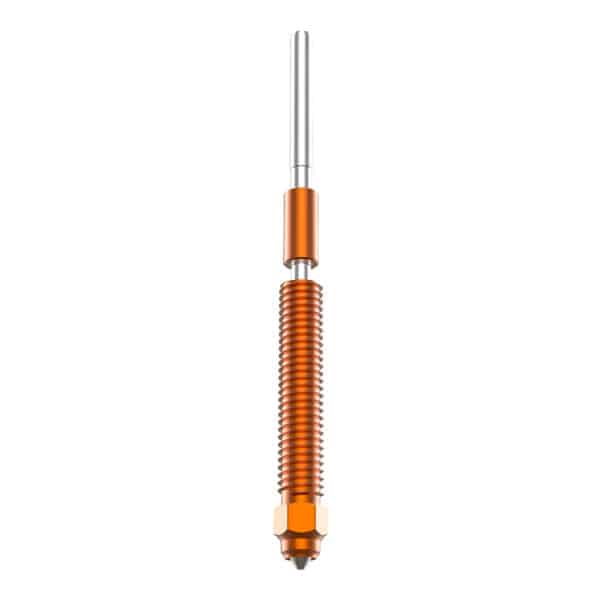

• Creality K2 Plus nozzle replacement guide
• Creality 3D-printer parts compatibility list
• Creality Ender-3 V3 KE maintenance guide

Settings in this guide are starting points. The correct values depend on the printer, hotend, filament, part and slicer profile. Stop and verify compatibility when any product title or installed hardware does not match your machine exactly.
